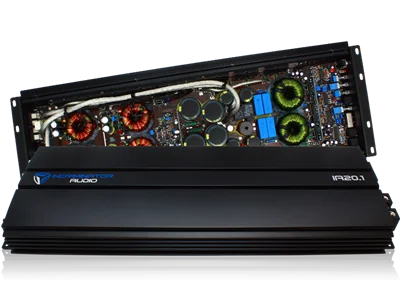

Creative Car Audio Incriminator Audio IA 20.1 2800W RMS Mono Block Car Audio Amplifier

$769.00

Category:

Description

Features

  • Digital Class-D Linkable Mono Block Amplifier
  • Dual MOS-FET Pulse Width Modulation Power Supply
  • 1 Ohm Stable Topology / 15.5 Volt Stable
  • Heavy Duty 3 Oz Copper Layer Double Sided Epoxy PCB
  • Extremely High Tolerance Electrical Components For Reliability
  • Proprietary Custom Tooled Heatsink with Onboard PCB Support For Vibration Resistance
  • High End Silver Tiffany RCA Inputs with Metal Potentiometers
  • Black Molded Oversized 1/0 Power and Ground Inputs
  • Advanced Strapping with Mirror Technology
  • Multi-Layer Bullet Proof Protection Circuit
  • Remote Bass/Gain with Clipping Indicator
Specifications

  • Rated Power ( 14.4V at 1% THD )
  • RMS Power – 2 Ohm Linked : 5600W
  • RMS Power – 1 Ohm Mono : 2800W
  • RMS Power – 2 Ohm Mono : 1400W
  • RMS Power – 4 Ohm Mono : 700W
  • Low Pass Filter ( 24dB/Oct. ) : 35Hz – 250Hz
  • Subsonic Filter ( 24dB/Oct. ) : 10Hz – 50Hz
  • Frequency Response ( +/- 1dB ) : 15Hz – 270Hz
  • Bass Boost ( 45Hz ) : 0 – 9dB
  • Input Sensitivity ( Volt +/- 5% ) : 6.0V – 0.2V
  • Signal / Noise Ratio : 95dB
  • Dampening Factor ( 1 Ohm ) : 350 +
  • Operation Mode : Master/Slave/Mirror
  • Power Efficiency ( 4 Ohm ) : 85%
  • Fuse Rating ( 14.4V ) : 250A
  • Fuse Rating ( 14.4V Linked ) : 500A
  • Power Input Connection : 1/0 Gauge
  • Operation Voltage : 8.5V – 15.5V
  • Speaker Output Connection : 8 Gauge
  • Dimensions ( Inches ) : 7.48 W x 2.24 H x 20.47 L
  • Dimensions ( Millimeters ) : 190 W x 57 H x 520 L
