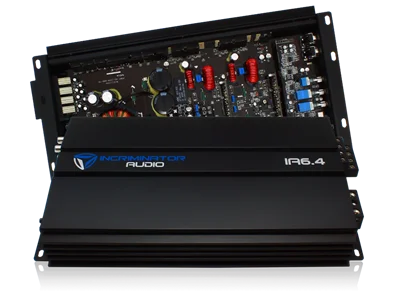

Creative Car Audio Incriminator Audio IA 6.4 4ch Car Audio Amplifier

• Digital Class-D Linkable Full Range Amplifier
• Dual MOS-FET Pulse Width Modulation Power Supply
• 2 Ohm Stable Stereo / 4 Ohm Mono Topology / 19 Volt Stable
• Heavy Duty 3 Oz Copper Layer Double Sided Epoxy PCB
• Extremely High Tolerance Electrical Components For Reliability
• Proprietary Custom Tooled Heatsink with Onboard PCB Support For Vibration Resistance
• High End Silver Tiffany RCA Inputs with Metal Potentiometers
• Black Molded Oversized 4 AWG Power and Ground Inputs
• Mirror Technology ( Channel 1/2 to 3/4 ) with Individual Clipping Indicators
• Multi-Layer Bullet Proof Protection Circuit
• Remote Bass/Gain with Clipping Indicator

Specifications

• Rated Power ( 14.4V at 1% THD )
• RMS Power – 4 Ohm Mono : 435W x 2CH
• RMS Power – 2 Ohm Stereo : 220W x 4CH
• RMS Power – 4 Ohm Stereo : 135W x 4CH
• Low Pass Filter ( 12dB/Oct. ) : 50Hz – 5000Hz ( X1, X10 )
• High Pass Filter ( 12dB/Oct. ) : 50Hz – 5000Hz ( X1, X10 )
• Subsonic Filter ( 12dB/Oct. ) : 10Hz – 500Hz
• Frequency Response ( +/-1dB ) : 20Hz – 20,000Hz
• Channel Separation : 95dB
• Input Sensitivity ( Volt +/- 5% ) : 6.0V – 0.2V
• Signal / Noise Ratio : 105dB
• Dampening Factor ( 4 Ohm ) : 200 +
• Operation Mode : Mirror CH1/2 > CH3/4
• Clipping Indicator LED: CH1/2 & CH3/4
• Power Efficiency ( 4 Ohm ) : 70%
• Fuse Rating ( 14.4V ) : 60A
• Power Input Connection : 4 Gauge
• Operation Voltage : 8.50V – 16.0V
• Speaker Output Connection : 8 Gauge
• Dimensions ( Inches ) : 7.48 W x 2.24 H x 11.81 L
• Dimensions ( Millimeters ) : 190 W x 57 H x 300 L
