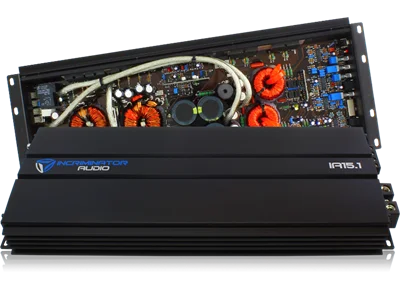

Incriminator Audio IA 15.1 2000W RMS Mono Block Car Audio Amplifier

• Digital Class-D Linkable Mono Block Amplifier
• Dual MOS-FET Pulse Width Modulation Power Supply
• 1 Ohm Stable Topology / 15.5 Volt Stable
• Heavy Duty 3 Oz Copper Layer Double Sided Epoxy PCB
• Extremely High Tolerance Electrical Components For Reliability
• Proprietary Custom Tooled Heatsink with Onboard PCB Support For Vibration Resistance
• High End Silver Tiffany RCA Inputs with Metal Potentiometers
• Black Molded Oversized 1/0 Power and Ground Inputs
• Advanced Strapping with Mirror Technology
• Multi-Layer Bullet Proof Protection Circuit
• Remote Bass/Gain with Clipping Indicator

Specifications

• Rated Power ( 14.4V at 1% THD )
• RMS Power – 2 Ohm Linked : 4000W
• RMS Power – 1 Ohm Mono : 2000W
• RMS Power – 2 Ohm Mono : 1000W
• RMS Power – 4 Ohm Mono : 500W
• Low Pass Filter ( 24dB/Oct. ) : 35Hz – 250Hz
• Subsonic Filter ( 24dB/Oct. ) : 10Hz – 50Hz
• Frequency Response ( +/- 1dB ) : 15Hz – 270Hz
• Bass Boost ( 45Hz ) : 0 – 9dB
• Input Sensitivity ( Volt +/- 5% ) : 6.0V – 0.2V
• Signal / Noise Ratio : 95dB
• Dampening Factor ( 1 Ohm ) : 350 +
• Operation Mode : Master/Slave/Mirror
• Power Efficiency ( 4 Ohm ) : 85%
• Fuse Rating ( 14.4V ) : 200A
• Fuse Rating ( 14.4V Linked ) : 400A
• Power Input Connection : 1/0 Gauge
• Operation Voltage : 8.5V – 15.5V
• Speaker Output Connection : 8 Gauge
• Dimensions ( Inches ) : 7.48 W x 2.24 H x 17.71 L
• Dimensions ( Millimeters ) : 190 W x 57 H x 450 L
